Comparison Table for Dental Osteotomes
| Item | Description | Markings (mm) | Handle Material | Tip Diameter (mm) | Tip Shape | Tip Type |
|---|---|---|---|---|---|---|
| 1 | Concave Osteotomes with Stops – Curved | 6-11-15 | Stainless Steel | 4 | Curved | Concave |
| 2 | Convex Osteotomes with Stops – Straight | 6-11-15 | Stainless Steel | 4 | Straight | Convex |
| 3 | Convex Osteotomes – Straight, No Stops | 6-8-10-12-14-16 | Stainless Steel | 2.8 | Straight | N/A |
| 4 | Progressive Osteotomes – Concave | 7.5-9-13.5-15.5 | Stainless Steel | 1.9 | N/A | Concave, Progressive |
| 5 | Osteotomes – Blunt, 5 mm | 5-10-15-20 | Stainless Steel | 5 | N/A | Blunt |
| 6 | Osteotomes – Blunt, 3 mm | 5-10-15-20 | Stainless Steel | 3 | N/A | Blunt |
| 7 | Osteotomes – Sharp | 8-12-18 | Stainless Steel | 2.7 | N/A | Sharp |
| 8 | Concave Osteotomes with Stops | 6-11-15 | Stainless Steel | 3 | Curved | Concave |
| 9 | Osteotomes – Tapered | 3.2-4.2-5.2-6.2-7.2-8.2-9.2-10.2 | Stainless Steel | N/A | Tapered | N/A |
| 10 | Osteotomes – Straight | 5-10-15-20 | Stainless Steel | N/A | Straight | N/A |
Osteotomes are surgical dental instruments used to cut and prepare bone for dental implantations. They are similar to a chisel but are beveled on both sides.
Top 10 Dental Implant Wrenches & Accessories

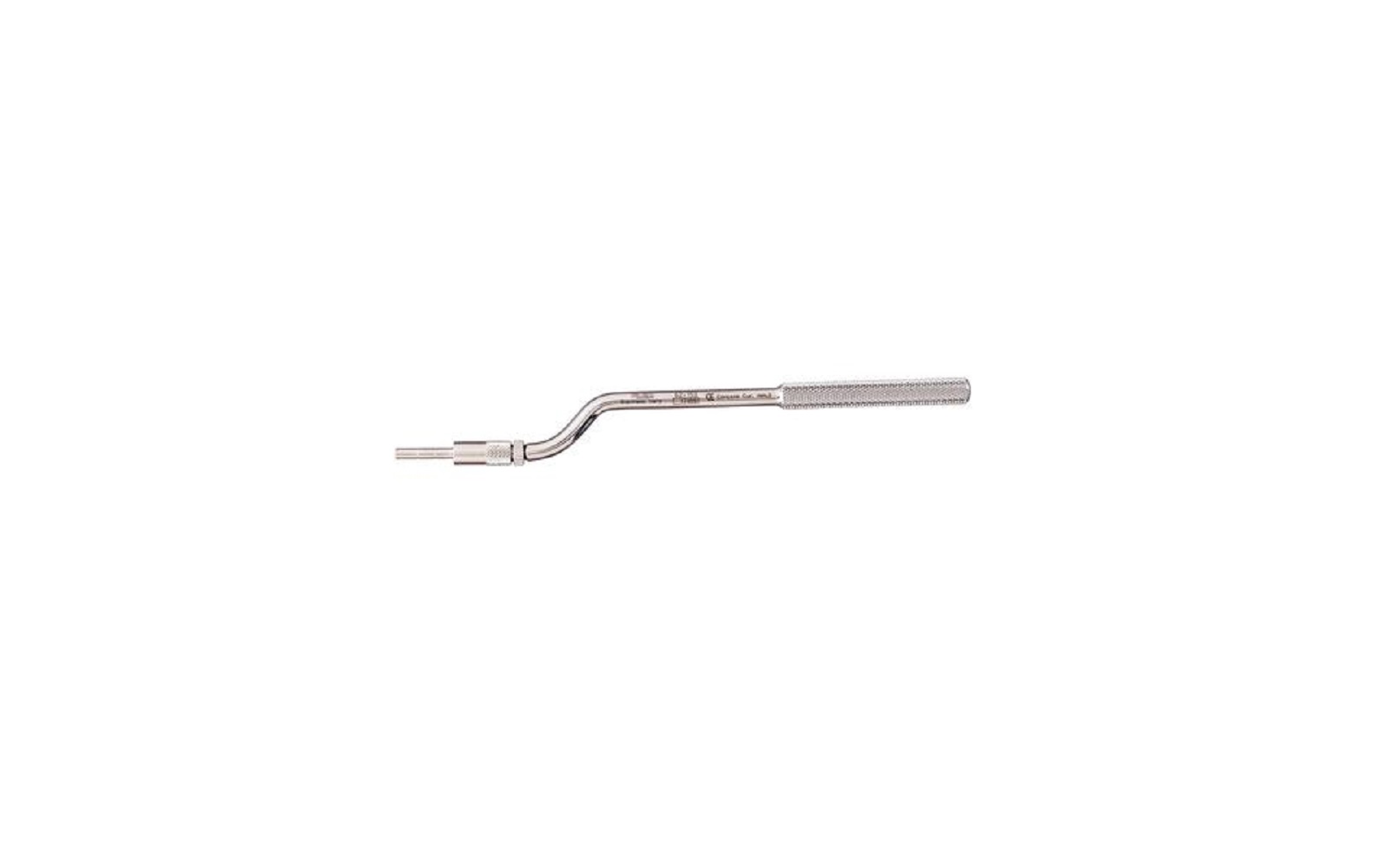

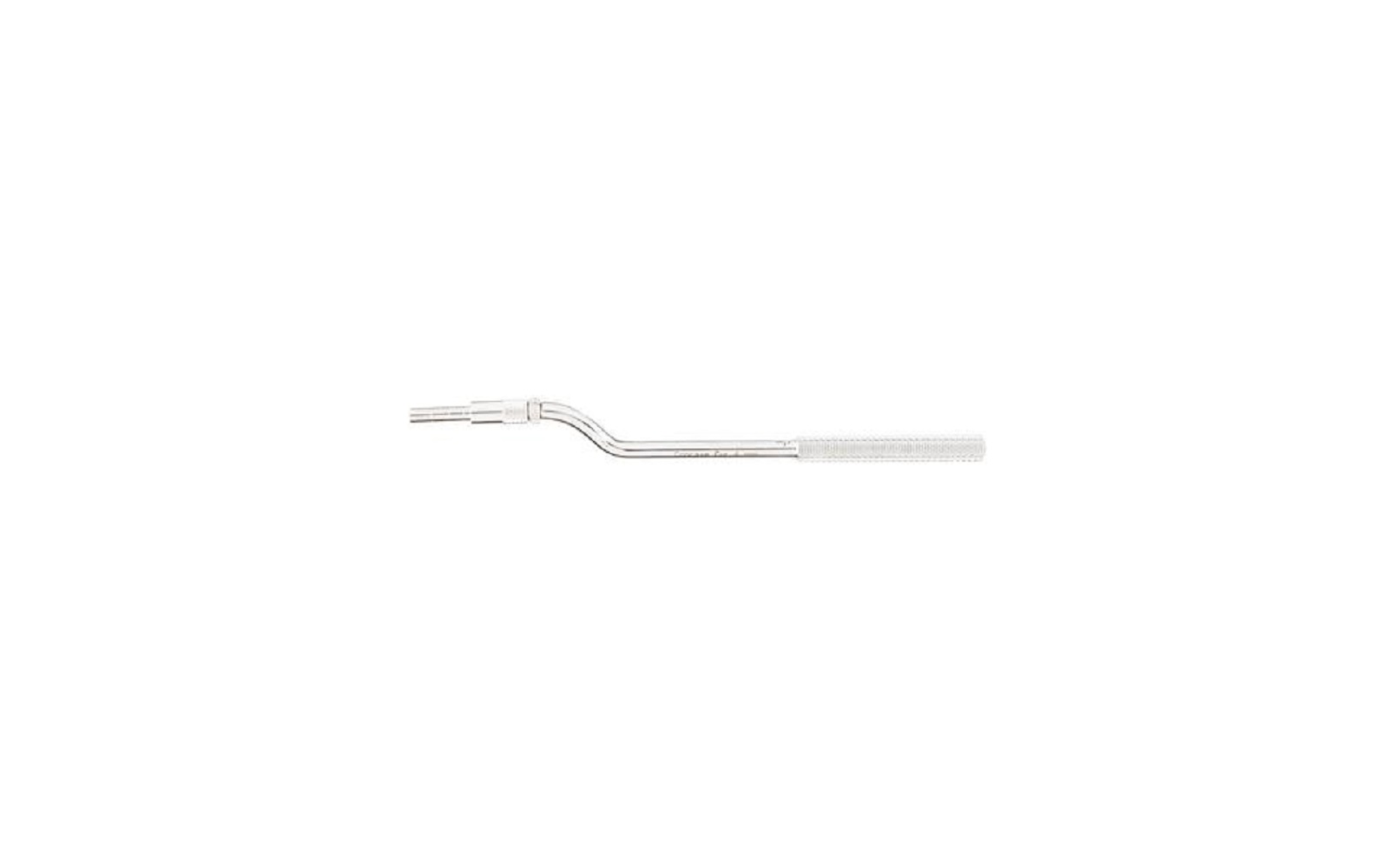

1. Concave Osteotomes with Stops – Curved
Product Description
Miltex® Concave Osteotomes with Stops – Curved are precision implant instruments used to fracture the maxillary sinus floor through the implant site. Their concave tips are specifically designed to facilitate the controlled placement of grafting material.
Product Overview
These osteotomes feature depth markings at 6, 11, and 15 mm, along with a built-in stop for safe and accurate placement. The curved (offset) design improves access in challenging anatomical areas. Made entirely of stainless steel for strength and durability.
Key Features
- Concave tip allows for graft material introduction
- Used for fracturing the sinus floor in implant procedures
- Integrated stop and depth markings (6, 11, 15 mm)
- Curved (offset) tip enhances access in limited spaces
- Made of high-quality stainless steel for surgical durability
Common Applications
- Sinus lift procedures in implant dentistry
- Graft material delivery during sinus elevation
- Controlled manipulation of maxillary bone
Technical Specifications
Product Name: Concave Osteotomes with Stops – Curved
Application: Implant Surgery
Tip Type: Concave
Tip Shape: Curved
Tip Diameter: 4 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 6, 11, 15 mm with Stop
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Reliable for sinus lifts—sturdy and easy to handle
Excellent precision with built-in depth control
Top 10 Dental Implant Drills for Implant Placement by Dentists, Periodontists & Oral Surgeons

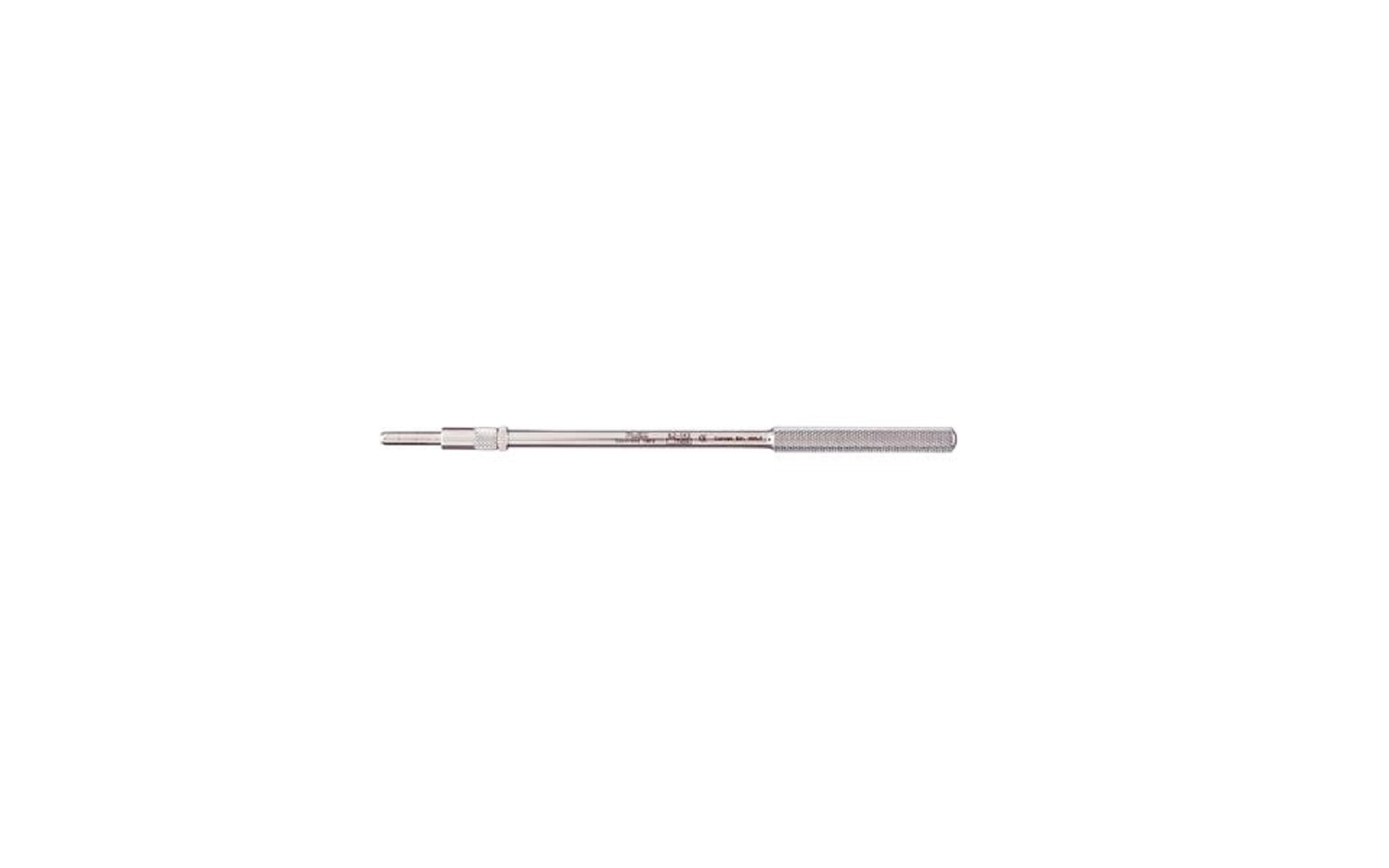

2. Convex Osteotomes with Stops – Straight
Product Description
Miltex® Convex Osteotomes with Stops – Straight are precision surgical instruments used to elevate the floor of the maxillary sinus in implant procedures. The convex tip is designed to gradually compress bone, and the built-in stop ensures controlled depth placement.
Product Overview
These osteotomes include etched depth markings at 6, 11, and 15 mm for accurate guidance. The straight design offers ease of use in standard implant site preparation, and the stainless steel construction ensures long-lasting performance and resistance to corrosion.
Key Features
- Convex tip for gradual sinus floor elevation
- Depth control with integrated stop and millimeter markings (6, 11, 15 mm)
- Straight design for standard access and insertion
- Stainless steel construction for durability and sterilization
- Ideal for sinus lift and bone condensing procedures
Common Applications
- Maxillary sinus floor elevation in implant dentistry
- Bone compression prior to implant placement
- Depth-controlled sinus lift procedures
Technical Specifications
Product Name: Convex Osteotomes with Stops – Straight
Application: Implant Surgery
Tip Type: Convex
Tip Shape: Straight
Tip Diameter: 4 mm
Depth Measurement: Markings at 6, 11, 15 mm with Stop
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Accurate and easy to control—great for sinus lift prep
Well-built with excellent tactile feedback during use

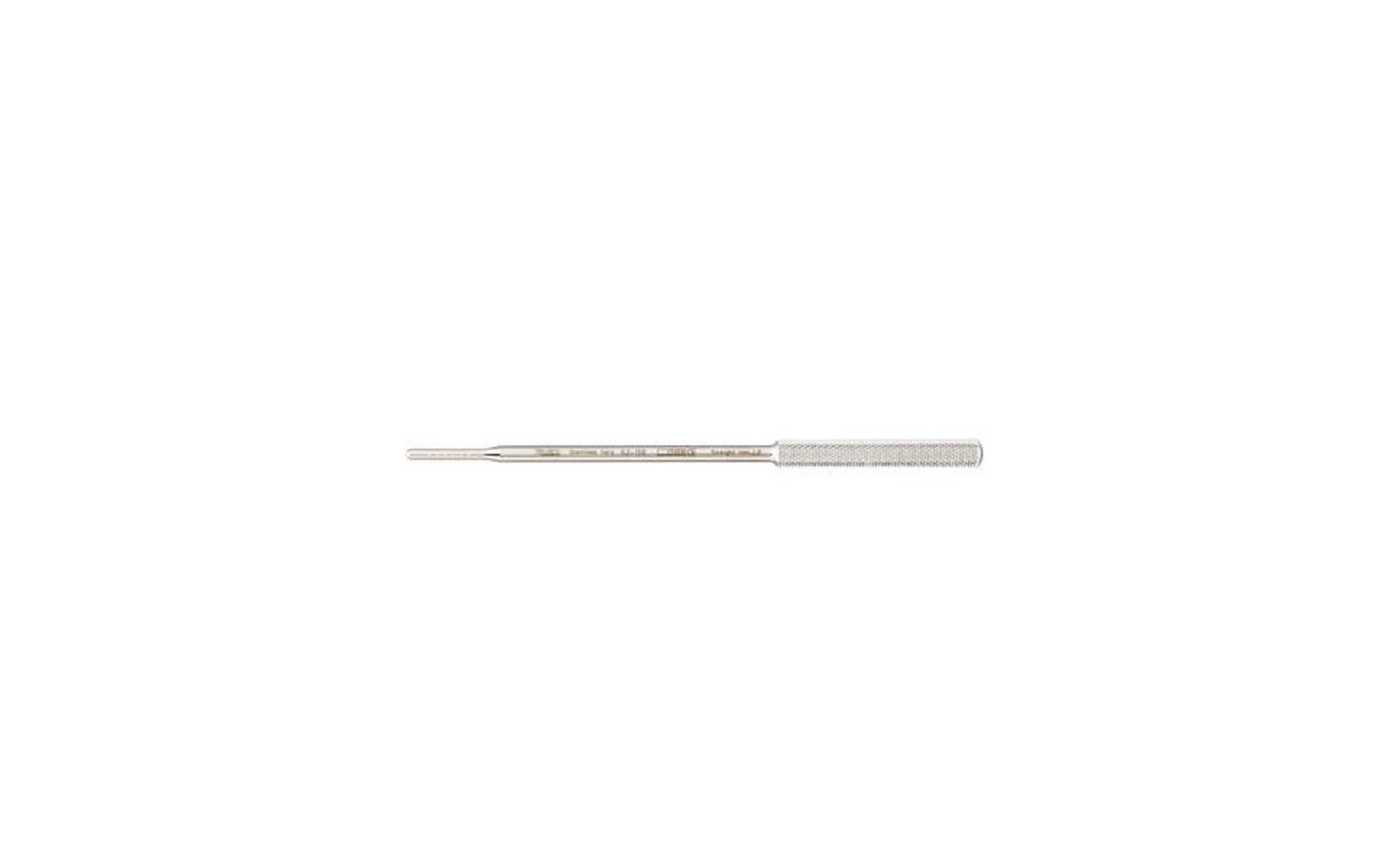

3. Convex Osteotomes – Straight, No Stops
Product Description
Miltex® Convex Osteotomes – Straight, No Stops are specialized implant instruments used to elevate the maxillary sinus floor following fracture. With a convex tip and graduated depth markings, they offer controlled bone manipulation without fixed depth stops.
Product Overview
These straight osteotomes feature etched depth markings at 6, 8, 10, 12, 14, and 16 mm, allowing the clinician to monitor insertion depth while maintaining tactile control. Made entirely of stainless steel, they are ideal for sinus elevation and bone compaction in implant surgeries.
Key Features
- Convex tip designed for sinus floor elevation
- Depth markings at 6, 8, 10, 12, 14, and 16 mm
- No stop—allows for flexible depth control
- Straight design for standard procedural access
- Constructed from durable stainless steel
Common Applications
- Maxillary sinus elevation after fracture
- Bone compression prior to implant placement
- Controlled sinus lift procedures in implant dentistry
Technical Specifications
Product Name: Convex Osteotomes – Straight, No Stops
Application: Implant Surgery
Tip Type: Convex
Tip Shape: Straight
Tip Diameter: 2.8 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 6, 8, 10, 12, 14, 16 mm (No Stop)
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Smooth handling and precise markings—ideal for experienced users
Reliable and durable for sinus lift procedures without depth limitation

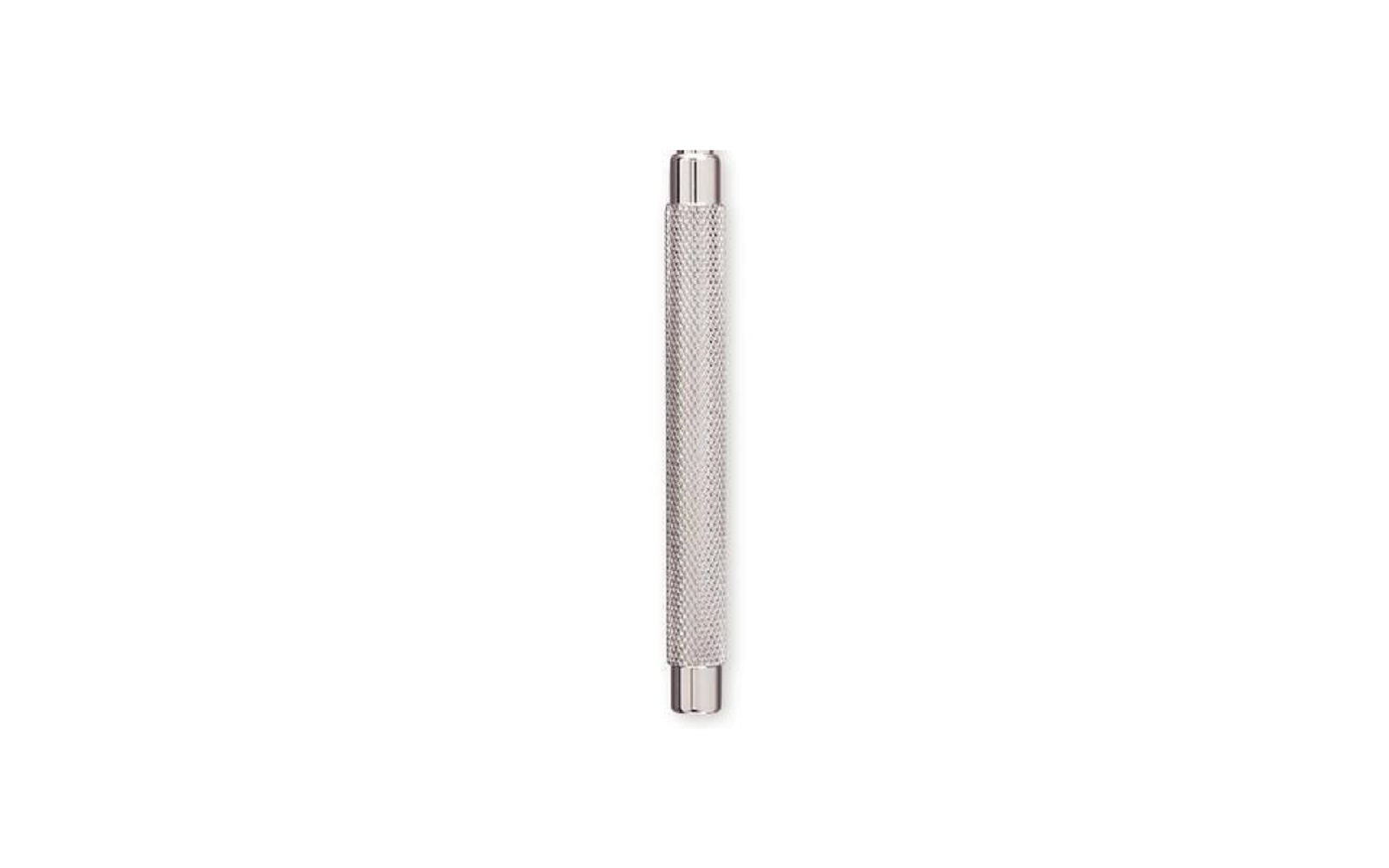

4. Progressive Osteotomes – Concave
Product Description
Miltex® Progressive Osteotomes – Concave are precision surgical instruments designed for controlled implant site preparation in maxillary areas with lower bone densities (Type 3 or 4). The concave tip facilitates both bone compaction and the introduction of graft material.
Product Overview
These osteotomes feature graduated depth markings at 7.5, 9, 13.5, and 15.5 mm to assist with accurate placement. Made from high-quality stainless steel, they offer strength, tactile feedback, and durability for reliable performance in sinus lift and implant procedures.
Key Features
- Concave tip enables bone compaction and graft delivery
- Ideal for bone densities 3 and 4 in the maxilla
- Depth markings at 7.5, 9, 13.5, and 15.5 mm
- Stainless steel construction for durability and sterilization
- Designed for progressive site enlargement in implant placement
Common Applications
- Implant site preparation in soft bone
- Sinus lift and bone grafting procedures
- Controlled osteotomy in Type 3 or 4 bone
Technical Specifications
Product Name: Progressive Osteotomes – Concave
Application: Implant Surgery
Tip Type: Concave
Tip Diameter: 1.9 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 7.5, 9, 13.5, 15.5 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Perfect for soft bone procedures—excellent depth control
Reliable and well-balanced for progressive osteotomy

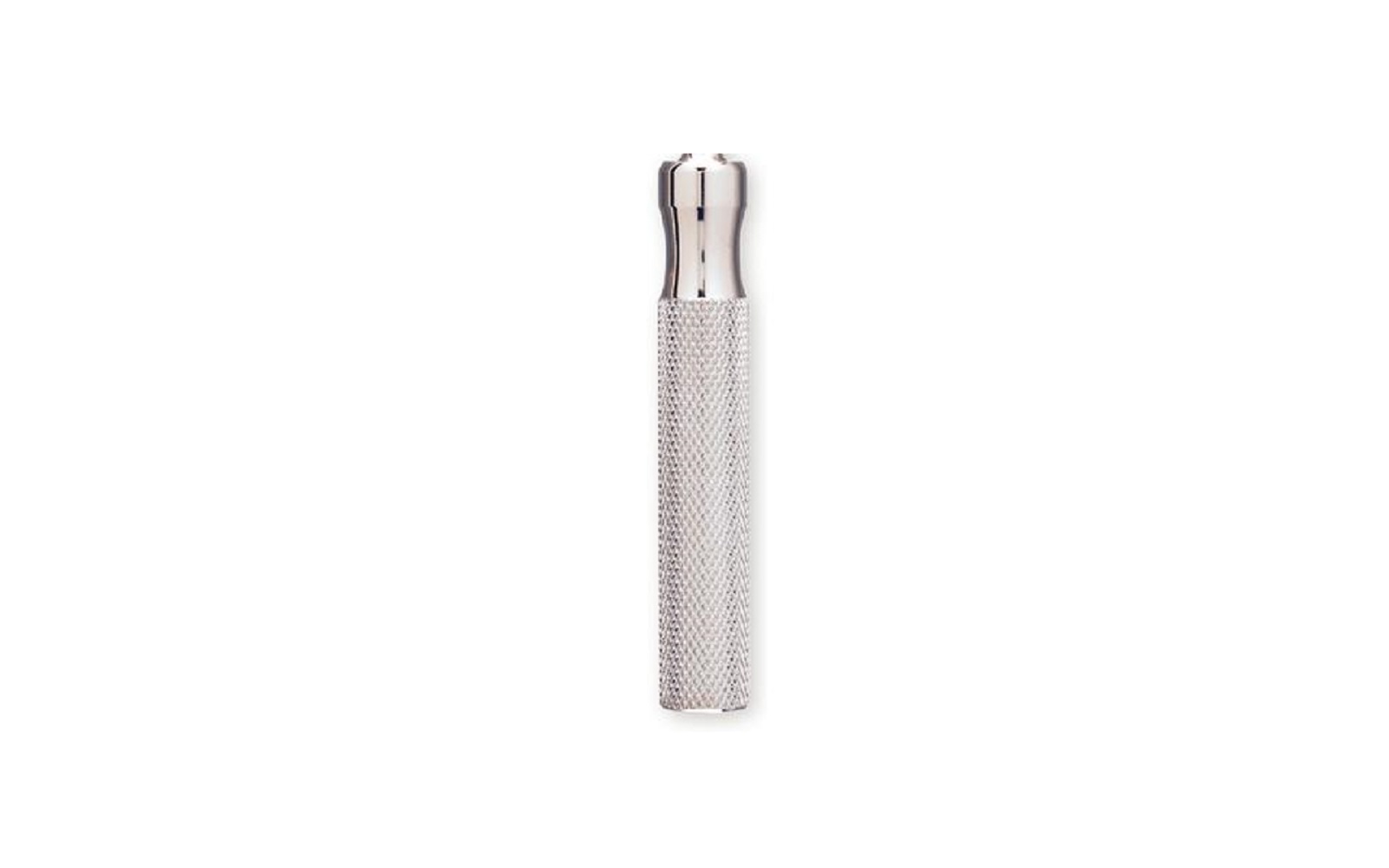

5. Osteotomes – Blunt, 5 mm
Product Description
Miltex® Blunt Osteotomes – 5 mm are specialized surgical instruments used to progressively expand the implant bed in alveolar ridges with reduced thickness. Designed for controlled circular expansion, they help create an optimal site for implant placement.
Product Overview
These blunt-tip osteotomes feature etched depth markings at 5, 10, 15, and 20 mm for precise site preparation. Made entirely from stainless steel, they are durable, easy to sterilize, and offer excellent tactile feedback during use.
Key Features
- Blunt tip for safe and controlled bone expansion
- 5, 10, 15, and 20 mm depth markings for guided placement
- Ideal for circular expansion in narrow alveolar ridges
- High-quality stainless steel construction for durability
- Designed for progressive widening of the implant bed
Common Applications
- Progressive circumferential implant site expansion
- Implant placement in narrow alveolar ridges
- Use in low bone width areas requiring ridge expansion
Technical Specifications
Product Name: Osteotomes – Blunt, 5 mm
Application: Implant Surgery
Tip Type: Blunt
Tip Diameter: 5 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 5, 10, 15, 20 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Great for ridge expansion—safe and easy to control
High-quality instrument with accurate depth markings

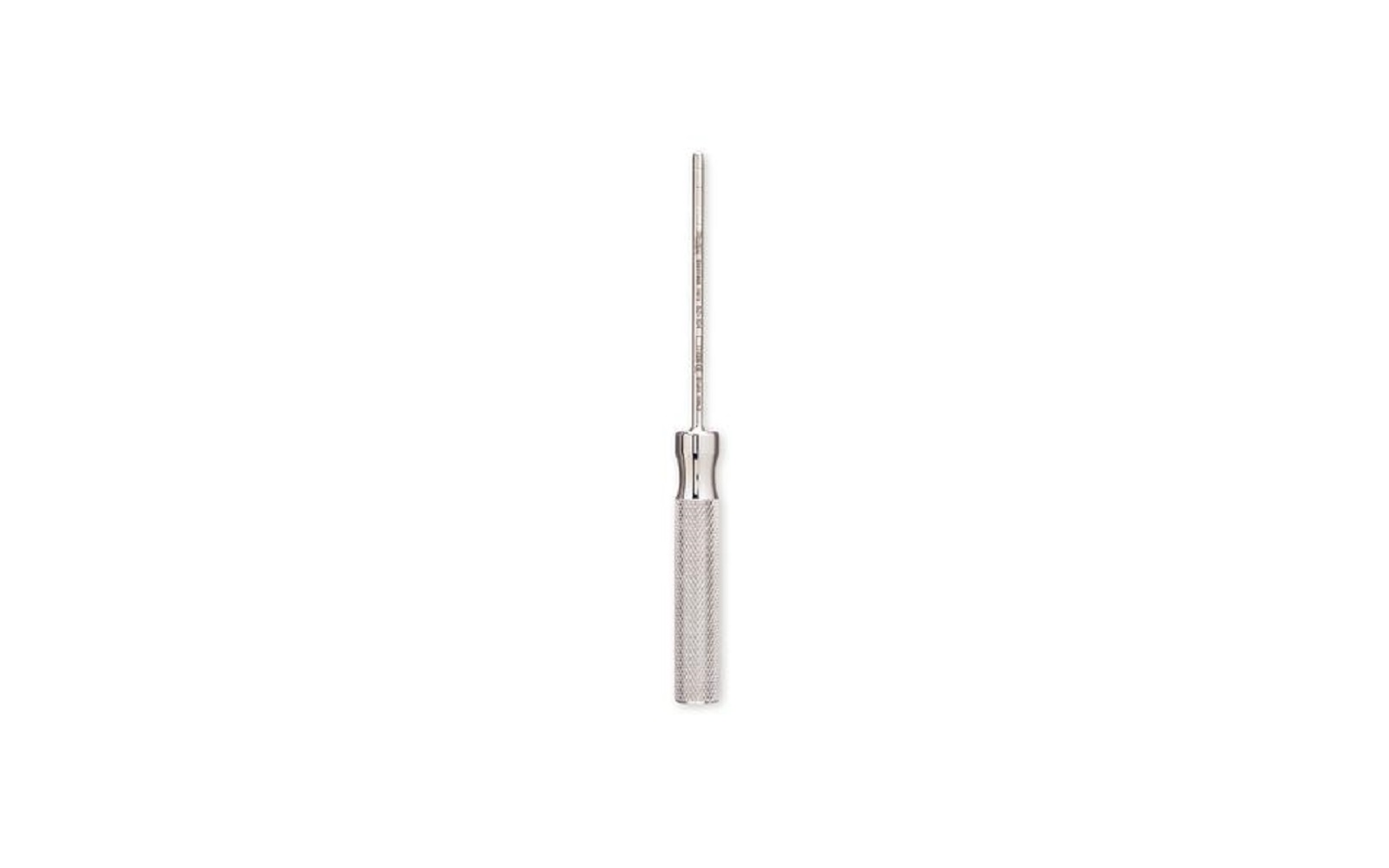

6. Osteotomes – Blunt, 3 mm
Product Description
Miltex® Blunt Osteotomes – 3 mm are precision instruments designed for the progressive circumferential expansion of implant sites in alveolar ridges with limited bone width. The blunt tip allows for safe bone displacement without cutting, making it ideal for controlled implant bed preparation.
Product Overview
Featuring depth markings at 5, 10, 15, and 20 mm, this osteotome enables accurate monitoring during ridge expansion procedures. Its 3 mm diameter is suited for early-stage or narrow-site expansion. Made from stainless steel for strength and sterilization compatibility.
Key Features
- Blunt tip for safe, controlled bone expansion
- Ideal for use in narrow or reduced alveolar ridges
- Depth markings at 5, 10, 15, and 20 mm
- 3 mm tip diameter for initial or fine expansion
- Durable stainless steel construction
Common Applications
- Circular ridge expansion in narrow bone
- Progressive preparation of implant sites
- Implant placement in areas with reduced ridge thickness
Technical Specifications
Product Name: Osteotomes – Blunt, 3 mm
Application: Implant Surgery
Tip Type: Blunt
Tip Diameter: 3 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 5, 10, 15, 20 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Perfect for precise expansion in narrow sites
Easy to handle with clear, accurate depth markings

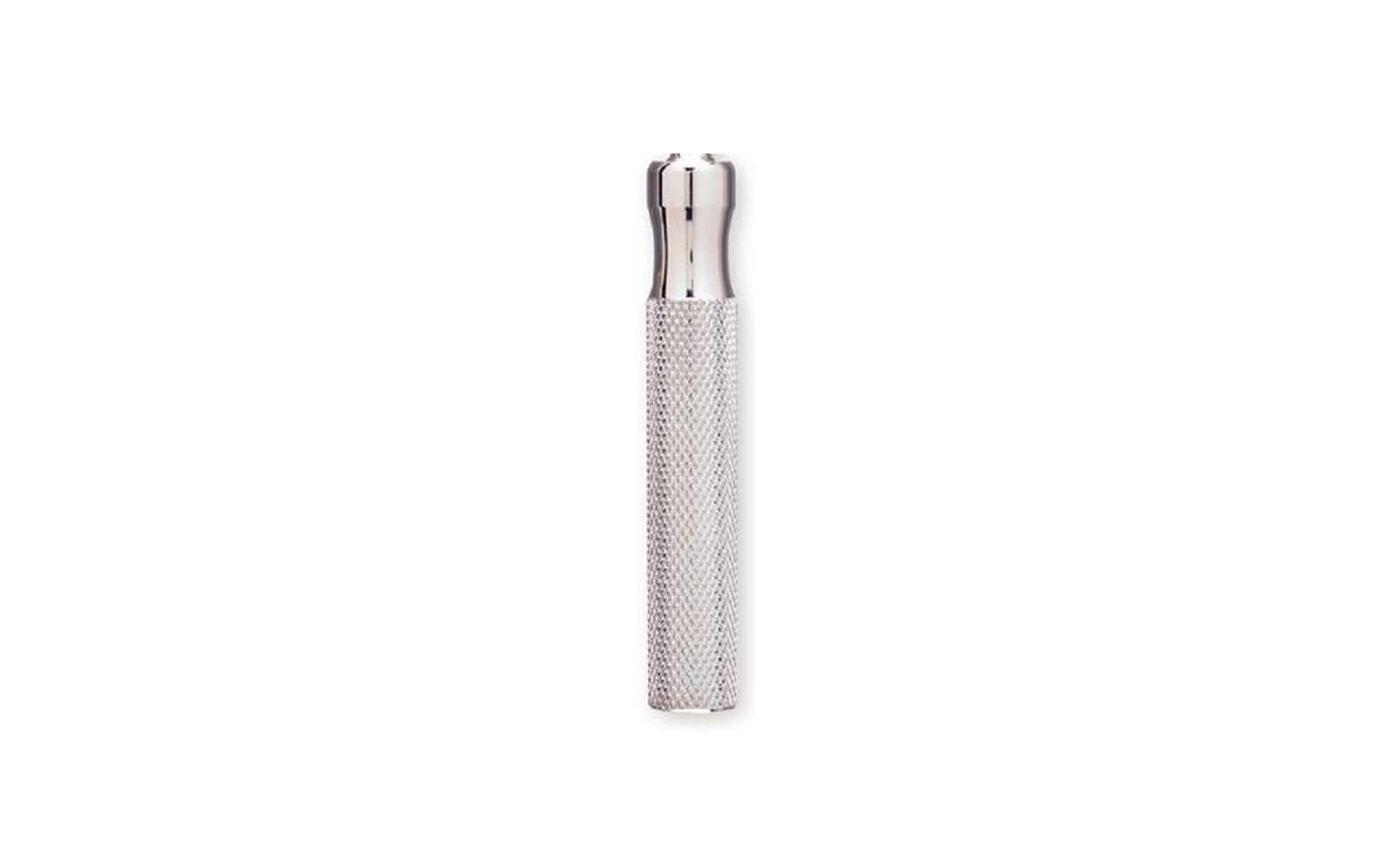

7. Osteotomes – Sharp
Product Description
Miltex® Sharp Osteotomes are surgical instruments designed for progressive circumferential expansion of the implant bed in alveolar ridges with reduced bone thickness. The sharp tip enables precise bone penetration and expansion for optimal implant site preparation.
Product Overview
With etched depth markings at 8, 12, and 18 mm, this osteotome allows for accurate depth control during implant site development. The 2.7 mm sharp tip is ideal for initiating expansion, and the stainless steel construction ensures durability and consistent performance.
Key Features
- Sharp tip for precise bone entry and expansion
- Designed for circular ridge expansion in narrow bone areas
- Depth markings at 8, 12, and 18 mm for accurate placement
- Durable stainless steel construction for clinical longevity
- Available in sharp or blunt tip styles
Common Applications
- Initial entry and expansion of narrow alveolar ridges
- Controlled osteotomy in implant placement
- Implant site preparation in reduced-width bone
Technical Specifications
Product Name: Osteotomes – Sharp
Application: Implant Surgery
Tip Type: Sharp
Tip Diameter: 2.7 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 8, 12, 18 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Sharp and effective—excellent for precise ridge expansion
Well-balanced and clearly marked for surgical accuracy
8. Concave Osteotomes with Stops
Product Description
Miltex® Concave Osteotomes with Stops are specialized surgical instruments used to fracture the floor of the maxillary sinus through the implant cavity. The concave tip allows for controlled bone manipulation and easy introduction of graft material during sinus lift procedures.
Product Overview
These osteotomes include depth markings at 6, 11, and 15 mm along with integrated stops to help maintain accurate insertion depth. Made of high-quality stainless steel, they are available in straight or curved patterns for optimal access in various anatomical situations.
Key Features
- Concave tip enables sinus floor fracture and graft placement
- Integrated stop and depth markings (6, 11, 15 mm) for precision
- Available in straight or curved (offset) variations
- Constructed from surgical-grade stainless steel
- Designed for controlled, safe sinus elevation procedures
Common Applications
- Sinus floor elevation via implant cavity
- Delivery of bone graft material
- Controlled maxillary sinus lift procedures
Technical Specifications
Product Name: Concave Osteotomes with Stops
Application: Implant Surgery
Tip Type: Concave
Tip Diameter: 3 mm
Tip Material: Stainless Steel
Depth Measurement: 6, 11, 15 mm with Stop
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Perfect for sinus lifts—great depth control and easy graft delivery
Reliable, high-quality instrument with consistent results

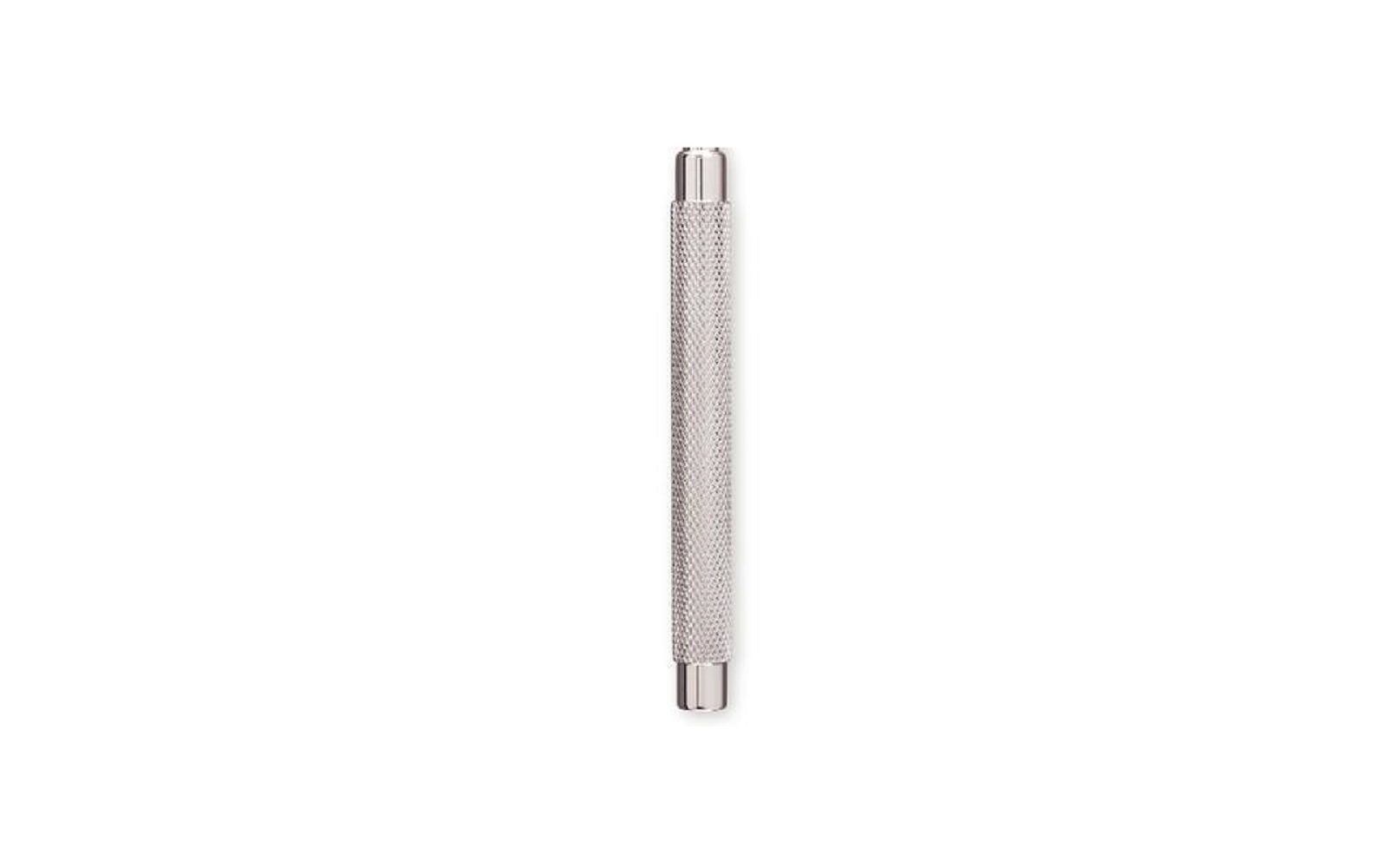

9. Progressive Osteotomes – Concave
Product Description
Miltex® Progressive Osteotomes – Concave are surgical instruments specifically designed for implant site preparation in maxillary regions with bone densities of Type 3 or 4. The concave tip allows for controlled bone compaction and the introduction of graft material as needed.
Product Overview
Featuring etched depth markings at 10 and 13 mm, these osteotomes provide clear guidance during insertion. The 5.5 mm concave tip and progressive design help gradually expand the site while preserving bone integrity. Constructed from high-quality stainless steel, these instruments offer strength, precision, and durability.
Key Features
- Concave, progressive tip for bone compaction and graft placement
- Ideal for use in soft bone (Type 3 or 4) maxillary implant sites
- Depth markings at 10 and 13 mm for controlled insertion
- 5.5 mm tip diameter for later-stage osteotomy
- Stainless steel construction for long-term clinical use
Common Applications
- Progressive implant site preparation in soft bone
- Sinus lift and bone grafting procedures
- Controlled bone expansion in the posterior maxilla
Technical Specifications
Product Name: Progressive Osteotomes – Concave
Application: Implant Surgery
Tip Type: Concave, Progressive
Tip Diameter: 5.5 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 10, 13 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Excellent control and feedback for soft bone preparation
Well-made and easy to use—ideal for sinus and implant case
10. Convex Osteotomes – Curved, No Stops
Product Description
Miltex® Convex Osteotomes – Curved, No Stops are precision surgical instruments used to elevate the maxillary sinus floor following fracture during implant procedures. The convex tip allows for controlled bone compaction and elevation without fixed depth restrictions.
Product Overview
Featuring a curved (offset) tip for improved access in posterior regions, these osteotomes include etched depth markings at 6, 8, 10, 12, 14, and 16 mm. Made entirely of stainless steel, they are built for durability, control, and effective sinus lift procedures.
Key Features
- Convex tip design for sinus floor elevation
- Curved shape enhances access to posterior maxilla
- Depth markings at 6, 8, 10, 12, 14, and 16 mm
- No integrated stop—allows flexible depth control
- Durable stainless steel construction for longevity
Common Applications
- Elevating the maxillary sinus floor
- Bone compaction and controlled osteotomy
- Implant preparation in posterior maxillary regions
Technical Specifications
Product Name: Convex Osteotomes – Curved, No Stops
Application: Implant Surgery
Tip Type: Convex
Tip Shape: Curved
Tip Diameter: 2.5 mm
Tip Material: Stainless Steel
Depth Measurement: Markings at 6, 8, 10, 12, 14, 16 mm
Handle Material: Stainless Steel
Package Quantity: 1/Pkg
Manufacturer: Miltex by Integra
Customer Ratings
Rating: 4.8 out of 5 (Based on verified reviews)
Customer Feedback
Great access and control for sinus lifts
Clear markings and excellent build quality
